Thermostatic Heater Illustration

I.         Product Features

1. Adopted by original Yudian Automation PDI Artificial Intelligence digital temperature controller, its high-accuracy, operation is safe, simple, clear and convenience.

2. Adopted by original high-quality SSR solid-state relay, long lasting as 100 times of the common contact relay.

3. Adopted by multiple high-quality stainless steel heating pipes, maintenance is convenience and low failure-rate.

4. The entire panel adopts aluminum alloy material, has high thermal conductivity, heat fast and evenly.

5. The whole furnace shell is all made by high-quality imported SUS304 stainless steel material to ensure it against from rusted and peeling off in the usual condition.

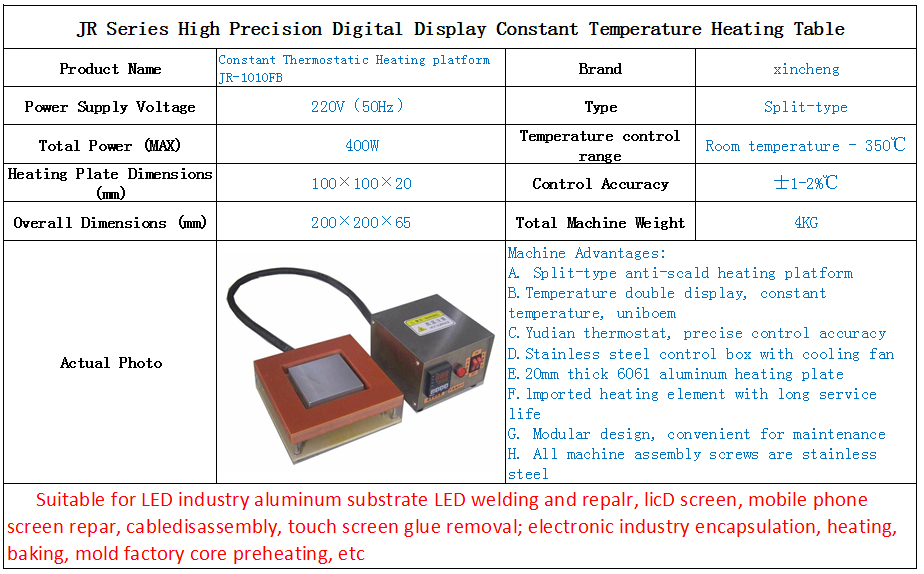

II.      Technical Specifications

Power supply: 220V (50HZ);

Temperature Control Range: Room Temperature -350℃;

Control Accuracy: ±1~2%℃;

Type: Overall (height 150mm), Split (height 65mm), High Temperature (room temperature to 450 degrees), Ultra-high Temperature (room temperature to 500 degrees).



Customized specification is available to booking with 5~7 working days lead-time.

III.   Application Filed

1. Any electronics industry bonding sealing and application heating.

2. LED industry aluminum base welding and repairing.

3. Mold core pre-heating.

4. Essential necessary equipment at the laboratory in various industrials such as biology, genetics, medicine, environment, biochemistry, laboratory, analysis room, teaching and research, etc.

IV.    Application and Instruction

1. Plug in the power and turn on the POWER switch while the GREEN indicator lights constantly, its means the device has being powered.

2. Turn on the HEATING switch and the device is starting, then the RED indicator lights constantly, it means the device is heating up; sparkling means it has been into the constant temperature while workstation is being intermittent heating up.

3. Once it finished using, please turn off the HEATING switch first and the device will be stopped heating, while the GREEN indicator light are still constant light in order to reminding the device are still working and please don’t touch the work surface. Wait for the work surface being cool down (suggesting after an hour) and then turn off the POWER switch.

V.       Attentions

1. Voltage must be 220V, please use the 3 pole socket which is connect to the earth and with anticreeping switch as well.

2. Please don’t open the case or switch any wire position unless you are the specific operation.

3. Hand touch is prohibited in case to avoid burn.

4. Please unplug the power supply when the people away or device has being long term idle.

5. Please keep the vent hole clean since the device has been equipped with fan cooler.

6. Please make sure it has unplugged from the power source when the fuse needs to be replaced for safety.

VI.    Temperature control panel

PV	measurement value / model value display	＜	data position switch
SV	set value / model content value display	∨	data reducing
OP1	out put	∧	data increasing
AU1	alarm 1	Ο	model set ( enter)
AU2	alarm 2	——	——

VII. Parameter Setting

1. Press the key “O” at few seconds to enter the following table:

2. Set value setting: Press the key ∧, ∨, ＜ to modify the control value which is showing at the display window under the default situation, press the key ∨ for value reducing, press the key ∧ for value increasing, the dot sparkly with the number which position switched( sparkly like cursor). Long press down for quick increase / reduce value, and the value will be speed up (secondary velocity) while the position of the dot rightward switch. Press the key ＜ to move and modify the position of the value (cursor). Press the key ∧ or ∨ to modify the value which is sparkly, control convenience.

3. Automatic adjustable (AT) operation, available with Automatic (AT) operating to confirm the PID adjustable parameter when use AI agronomical PID control. The AT parameter shows up after press the key ＜ at 2 seconds under the default situation. Press the key ∧ to modify the OFF to ON which is shown at the bottom display window, the Automatic Adjustable operation will be start by press the key “O” to confirm. At the same time, the letter “AT” will be sparking at the display window which is at the bottom of instrument panel, the result of the suitable PID parameter for the current condition will be counted automatically by the local micro CPU of the instrument panel, and it will be exterminated automatically from the AT operating. Press the key ＜ at another 2 seconds to switch up the AT parameter from ON to OFF and confirmed by press the key “O” to give up the AT operating. (Remarks: The system parameter value are totally different within the different set value, SV value modify are prohibited while the AT operating in process. The control result might be not the best once the AT operation finished, it will be got the best result after use in a while).

VIII.            Guarantee

1. 12 months guaranteed for the complete device (6 months for heating pipe) beyond human control.

2. Lifetime beneficial paid service after guarantee.



Note:

1. Please make sure the connector plug is plug in fastened, no shaking movement, otherwise the power socket will be burned by the spark.

2. The temperature might be 3-5 degrees higher than the setting number and it will be back to it after few minutes, this feature could be increase the uniformity of heating panel temperature.

3. Since the heating panel is machined goods, there has some machine oil left at the screw hole and it would be some smoke with smell comes up after burning by the high temperature, this is normal phenomenon and will be disappeared after a period.

4. Please ignore the noise when this equipment running, it’s because of grating that the heating pipe rubs against with panel during the situation of substances expand when heated and contract when cooled, please feel free to use, there will be no danger.

5. There are 2 fuses inside the equipment to ensure the safety.

6. It has been took 24 hours for burn-in test before out-going of the factory, please don't change the default parameter without authorized，otherwise our association will take no responsibility and liability in human injury.
